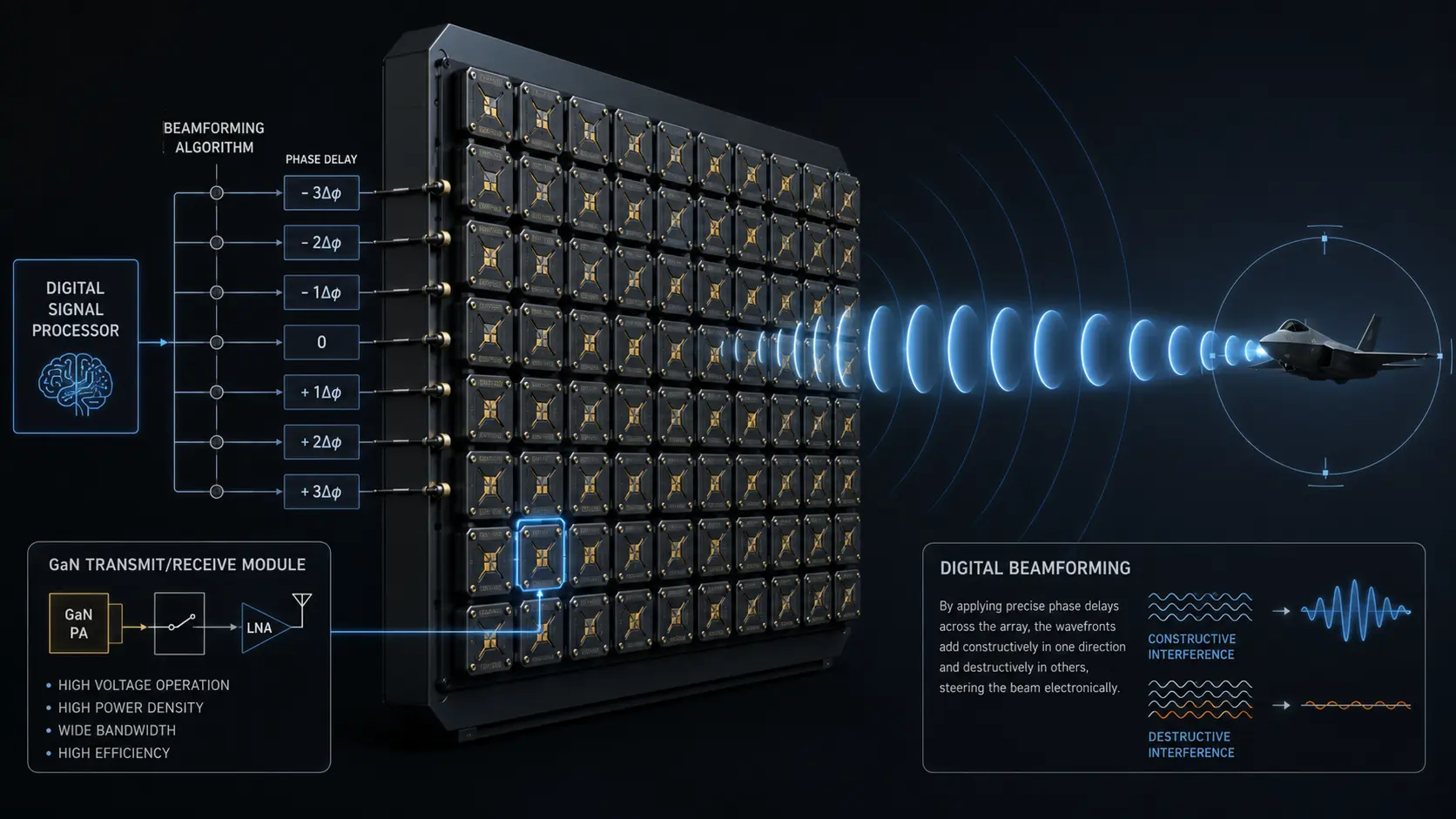

Cinematic render of a GaN AESA radar array demonstrating digital beamforming.

Why Modern Radars Have No Moving Parts

Gallium Nitride digital beamforming is a radar architecture that uses thousands of microscopic, high-voltage solid-state transmitters to mathematically steer invisible walls of electromagnetic energy without physically moving the antenna.

AT A GLANCE

  • Concept: Wide Bandgap: Gallium Nitride operates at extreme voltages without melting, projecting immense electromagnetic force.
  • Concept: Transmit/Receive Modules: The radar face acts as a grid of thousands of individual, completely independent miniature radios.
  • Concept: Phase Shifting: Algorithms delay signals by microscopic fractions of a second to steer the beam mathematically.
  • Concept: Electronic Warfare: The system can simultaneously track hostile stealth aircraft while actively jamming incoming missile seekers.

HOW GALLIUM NITRIDE DIGITAL BEAMFORMING WORKS

Legacy mechanical radar spins a physical dish, updating target locations painfully slowly. An Active Electronically Scanned Array (AESA) abandons the mechanical motor entirely, replacing the dish with a flat grid containing thousands of individual Transmit/Receive Modules (TRMs).

Historically, defense contractors manufactured these TRMs using Gallium Arsenide (GaAs). This legacy material possesses a narrow bandgap, meaning it physically breaks down and shorts out under extreme high-voltage conditions.

Gallium Nitride (GaN) fundamentally alters this physical limitation. GaN features a wide electron bandgap of 3.4 eV. This atomic structure allows engineers to push massive electrical currents through the microscopic silicon without destroying the crystal lattice.

Each GaN TRM operates as a completely independent, high-energy radio. To steer the radar beam, a central Digital Signal Processor (DSP) runs a beamforming algorithm that assigns a specific mathematical phase delay to every individual module on the grid.

By delaying the electromagnetic wave emission from the left side of the array by a fraction of a nanosecond relative to the right side, the radio waves physically intersect in the air. This precise constructive and destructive interference mathematically shapes the raw energy into a focused beam that sweeps the sky instantly at the speed of light.

WHY IT MATTERS NOW

Modern aerial combat occurs entirely within the invisible domain of the electromagnetic spectrum. If an adversary successfully jams a fighter jet’s radar, they effectively blind the pilot and neutralize the multi-million-dollar asset without firing a single kinetic weapon.

GaN-based AESA radars mathematically defeat traditional electronic warfare tactics. Because the digital beamformer controls thousands of independent modules, the radar can continuously fracture its energy output across multiple unpredictable frequencies.

The processor can dedicate one sector of the array to tracking a hypersonic glide vehicle in the stratosphere. Simultaneously, it can command another sector to project a focused block of RF energy directly at an enemy drone, intentionally burning out its internal circuitry with raw electromagnetic force.

Raytheon utilized this exact architecture to develop the Lower Tier Air and Missile Defense Sensor (LTAMDS) for the US Army. The transition to GaN allows the LTAMDS to project an intense signal capable of detecting low-flying cruise missiles hidden deep within ground clutter, outpacing legacy Patriot radar limits.

Equipping an F-35 fighter jet with a GaN AESA radar allows it to project a highly directional, low-probability-of-intercept signal. The aircraft paints the enemy target clearly while appearing as nothing more than ambient background radiation on the hostile radar warning receivers.

WHAT MOST PEOPLE MISS

Defense analysts consistently evaluate radar systems based purely on their maximum theoretical detection range and algorithmic processing speed. They entirely ignore the severe thermodynamic constraints dictating actual battlefield performance.

Pushing extreme voltage through thousands of dense GaN modules generates catastrophic levels of localized heat across the radar face. The silicon must dissipate this energy instantly to survive.

The maximum operational range of a modern stealth fighter’s radar is physically capped by the heat rejection capacity of the aircraft’s internal liquid cooling loops. If the physical pumps cannot extract the heat fast enough, the radar must mathematically throttle its own beamforming algorithms to prevent a total hardware meltdown.

THE TRAJECTORY

Next 12–36 Months: Integration into lower-tier expendable assets. As commercial GaN wafer yields improve, unit costs will crash, allowing defense primes to integrate miniaturized digital beamformers into decentralized drone swarms and uncrewed ground vehicles.

Next Five Years: Multi-function RF systems. Radars will stop functioning solely as sensors and become high-bandwidth communication nodes. The array will pass gigabytes of encrypted targeting data between fighter jets using the exact same phase-shifted beams used to track enemies.

Next Ten Years: Distributed coherent arrays. Multiple separate aircraft will mathematically link their individual AESA radars through secure datalinks, forming a massive, synthetic radar aperture spanning hundreds of miles of airspace to reliably detect advanced quantum stealth coatings.

What Could Go Wrong: Extreme supply chain centralization. The refinement of military-grade Gallium is heavily concentrated within the borders of geopolitical adversaries. A sudden sovereign export restriction on raw gallium instantly throttles the western defense industrial base’s ability to manufacture replacement TRMs during a sustained conflict.

Most Likely Outcome: GaN digital beamforming will become the absolute baseline prerequisite for survival in contested airspace. Mechanical radars will be rendered entirely obsolete, replaced permanently by solid-state geometric RF manipulation.

KEY TERMS

  • Gallium Nitride (GaN): A wide-bandgap semiconductor material capable of sustaining extreme voltages and high temperatures to generate massive RF output.
  • Active Electronically Scanned Array (AESA): A flat-panel radar system composed of thousands of independent transmitter and receiver modules that steer beams without physical movement.
  • Digital Beamforming: The algorithmic manipulation of the phase and amplitude of multiple RF signals to electronically point an electromagnetic wave in a specific direction.
  • Transmit/Receive Module (TRM): A microscopic, self-contained radio circuit that acts as a single emitting pixel on the face of an AESA radar.
  • Constructive Interference: The physical phenomenon where multiple aligned electromagnetic waves mathematically combine to form a single, highly amplified directional pulse.

SOURCES

  • Defense Advanced Research Projects Agency (DARPA) — Arrays at Commercial Timescales (ACT) and GaN Substrate Maturation
  • Raytheon Missiles & Defense — LTAMDS Architecture and Gallium Nitride Foundry Operations
  • Institute of Electrical and Electronics Engineers (IEEE) — Solid-State Phased Array Radar and Digital Beamforming Mathematics
  • Center for Strategic and International Studies (CSIS) — The Electronic Warfare Landscape and AESA Modernization
