AT A GLANCE
- Concept: The Tracking Loop: Pulse-Doppler radar constantly scans the perimeter to calculate incoming munition vectors.
- Concept: Hard-Kill Intercept: The system fires a localized shotgun blast of pre-formed fragments to physically shred the threat.
- Concept: Top-Attack Vulnerability: Standard tank armor is thinnest on the roof, making steep-angle drone strikes lethal.
- Concept: The Minimum Defeat Distance: The system must engage far enough away to prevent residual explosive shrapnel from penetrating the vehicle.
HOW IT WORKS
Modern anti-tank guided missiles and loitering munitions carry shaped-charge warheads. When these strike standard steel armor, they detonate, firing a super-plasticized jet of molten copper through the hull at hypersonic speeds. Adding thicker, heavier armor no longer stops this reaction; it only slows the vehicle down.
To survive, militaries shifted from passive armor to active kinematics. An Active Protection System (APS), like the Israeli-designed Trophy system, relies on an automated, closed-loop processing architecture.
Four flat-panel pulse-Doppler radars mount flush against the turret. They project a continuous 360-degree invisible hemisphere around the vehicle. The moment an object enters this hemisphere, the fire-control computer analyzes the radar return. It instantly calculates the object’s velocity, angle of descent, and exact time to impact.
If the algorithm determines the object is a lethal threat on a collision course, it initiates a hard-kill intercept. Human reaction time is far too slow for this process. The computer assumes complete autonomous control.
In fractions of a second, the system slews a mechanical launcher toward the incoming threat. It fires an Explosively Formed Projectile (EFP) or a dense cloud of tungsten fragments. This countermeasure intercepts the missile roughly ten to thirty meters away from the vehicle. The kinetic impact physically shreds the missile’s shaped charge, causing it to deflagrate harmlessly in mid-air rather than detonating against the hull.

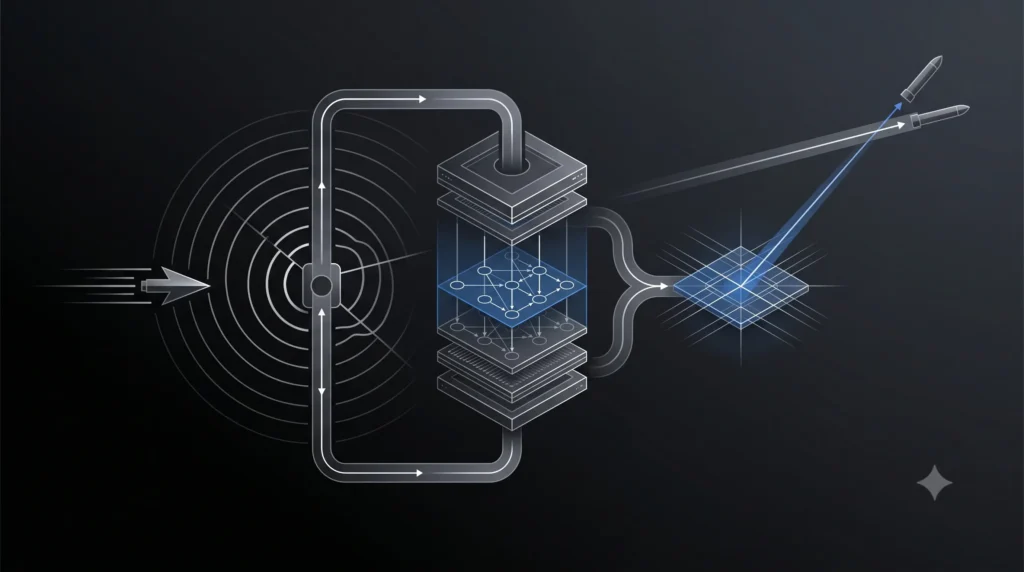

Active Protection System Intercept Kinematics
Simulate the microsecond sensor-to-shooter loop tracking incoming threats inside top-attack zones.
WHY IT MATTERS NOW
The proliferation of cheap, commercial first-person-view (FPV) drones fundamentally altered the economics of armored warfare. A two-thousand-dollar drone strapping a rocket-propelled grenade to its chassis can easily destroy a ten-million-dollar Abrams tank.
These drones exploit the greatest physical vulnerability of armored vehicles: top-attack angles. Traditional tank design concentrates the thickest composite armor on the front glacis to survive horizontal, tank-on-tank engagements. The roof armor remains dangerously thin to save weight.
As drone operators specifically target these vulnerable roof panels in dense urban environments, passive armor becomes entirely obsolete. The survival of global mechanized infantry relies completely on the processing speed of APS radar tracking loops.
Militaries across the United States, Europe, and the Middle East are frantically retrofitting their legacy tank fleets with systems from Rafael Advanced Defense Systems and General Dynamics. Without these automated, explosive shields, massed armored formations simply cannot survive the constant, vertical attrition imposed by cheap drone swarms.
WHAT MOST PEOPLE MISS
Most defense analysts view APS simply as an automated shotgun. They ignore the brutal geometric constraints of the minimum defeat distance.
If the system intercepts the missile too close, the residual kinetic energy of the shredded munition still carries forward and penetrates the thin roof armor. If it intercepts too far away, the spreading cloud of tungsten countermeasures loses the density required to physically destroy the shaped charge. The true engineering triumph is not firing the countermeasure; it is the algorithmic precision required to calculate the exact spatial coordinate where the intercept physics are mathematically optimal.
THE TRAJECTORY
Next 12–36 Months: Defense contractors will aggressively update APS software to classify and defeat slow-moving, vertically dropping quadcopters. Legacy radar algorithms, originally tuned to ignore slow-moving birds and focus on high-speed supersonic missiles, require massive software overhauls to recognize a drone hovering directly above the turret.
Next Five Years: APS architectures will shift from localized vehicle protection to networked swarm defense. A platoon of tanks will share their radar telemetry via high-bandwidth datalinks. If one tank exhausts its countermeasure magazines, an adjacent tank will automatically fire its APS to intercept a missile targeting its neighbor.
Next Ten Years: Solid-state directed energy weapons will slowly replace physical explosive countermeasures. High-energy fiber lasers integrated into the APS loop will physically burn the optical sensors and flight controllers out of incoming drones at the speed of light, entirely eliminating the dangerous fragmentation hazard posed to nearby dismounted infantry.
What Could Go Wrong: Electronic warfare completely dictates APS efficacy. If a sophisticated adversary deploys wideband radar jammers, they can blind the flat-panel sensors mounted on the tank. A blinded APS cannot calculate the intercept kinematics, rendering the multi-million-dollar vehicle instantly defenseless against incoming fire.
Most Likely Outcome: Active protection will transition from an expensive aftermarket retrofit to an inescapable baseline requirement for all future combat vehicles. The definition of armored survivability will permanently decouple from the physical thickness of steel plates, relying entirely on the processing speed of software-defined radar loops.
KEY TERMS
- Active Protection System (APS): An automated defensive architecture that uses sensors and countermeasures to detect and destroy incoming munitions before they strike a vehicle.
- Pulse-Doppler Radar: A sensor system that measures both the range and the precise radial velocity of a target by tracking the shift in radio wave frequencies.
- Hard-Kill Countermeasure: A defensive action that physically destroys an incoming threat using an explosive blast or kinetic impact.
- Shaped Charge: An explosive device engineered with a hollow cone liner to focus the energy of the detonation into a hyper-velocity jet of molten metal.
- Top-Attack Munition: A missile or drone programmed to fly over a target and strike downward, exploiting the thinner armor on the roof of a vehicle.
